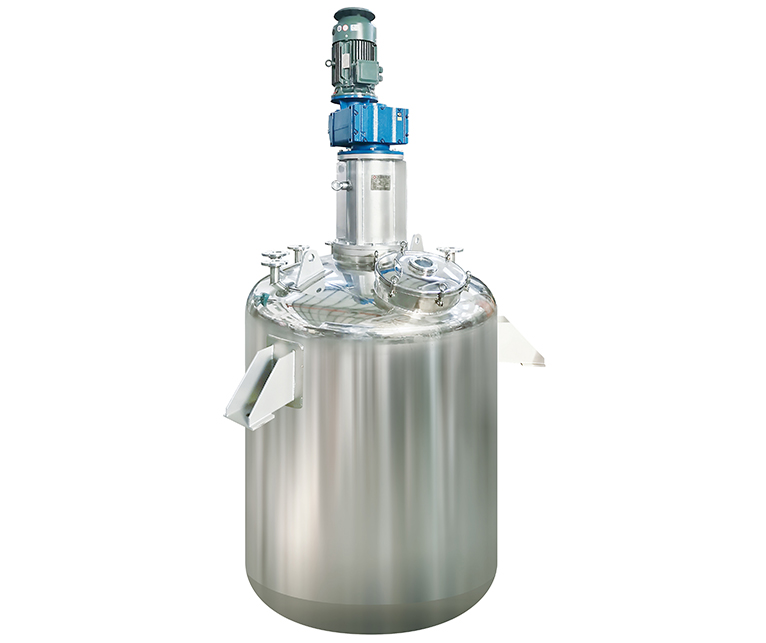

調色均勻，混合，混溶性好，結構合理，有強力攪拌的功能。
適用于涂料行業的色漆配色混合，以及其他行業的液→液，液→固物料的混合。
Colour matching is completed quickly by the action of the blending mechanism, The machine is robustly fabricated and is easily installed.
Suitable for both colour matching and mixing of paints and pigmented bases and the blending of liquid-liquid, liquid-solid phase materials in other mixing industries.
| 規格 Type | TC0.5M3 | TC1M3 | TC2M3 | TC3M3 | TC4M3 | TC5M3 | TC6M3 | TC8M3 | TC10M3 | |
| 電機功率 Power (kw) | 1.1 | 2.2 | 4 | 5 | 7.5 | 11 | 11 | 18.5 | 15 | |
容積 Capacity (m3) | 0.5 | 1 | 1 | 3 | 4 | 5 | 6 | 8 | 10 | |
| 轉速 Speed (rpm) | 130 | 130 | 130 | 88 | 88 | 88 | 88 | 88 | 63 | |
攪漿直徑 | 500 | 500 | 500 | 800 | 800 | 1200 | 1300 | 1250 | 1250 | |
攪漿數量 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | |
| 外形尺寸 External Dimensions(mm) | D | 800 | 1000 | 1400 | 1600 | 1600 | 1800 | 1900 | 2000 | 2200 |
| H | 1060 | 1355 | 1575 | 1725 | 2025 | 2125 | 2300 | 2725 | 3050 | |
| H1 | 550 | 550 | 1210 | 1240 | 1290 | 1510 | 1510 | 1660 | 1800 | |
