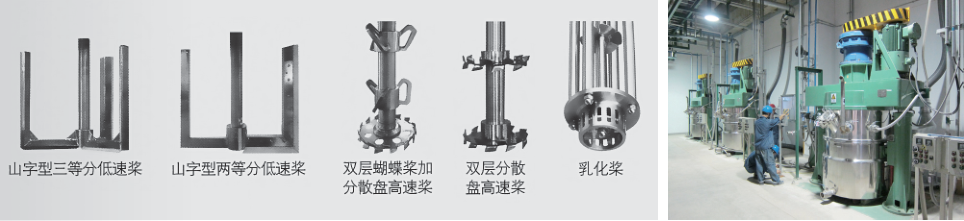

通惠強力分散機的兩高速分散機構和一個刮邊刮底機構使物料在釜體內作復雜的運動，從而達到迅速分散研磨的效果。廣泛應用于高粘度、膏體狀物料的混煉、攪拌、硫化、分散、研磨、重新聚合等工藝過程。我司產品具有分散均勻、無死角、出料方便等優點。
強力分散機主要適用于生產：硅酮密封膠、聚氨酯密封膠、機械密封膠、液體硅膠、RTV、電子膠、油墨、顏料、染料、電子漿料、樹脂、塑料、牙膏、化妝品等行業。使用粘度范圍10,000cps-2,000,000cps左右。
Tonghui triple shaft mixers have two high speed dispersers & a scrapper,the unique design will make the reactant fine dispersing. They are widely used in high viscosity, cream material mixing, vulcanization, dispersing, milling, polymerization processing. Our machine have no blind mixing spot & easily discharging.
Tonghui triple shaft mixers are widely used in industries: silicone sealant, PU sealant, machinery sealant, liquid silicone, RTV, Electronic sealant, ink, pigment, dye, electronic paste, resin, plastic, tooth paste etc. Viscosity range from 10,000cps~2,000,000cps.
| 型號 Type | QLF-5 | QLF-300 | QLF-500 | QLF-1000 | QLF-2000 | QLF-5000 |
缸體容積 | 5 | 300 | 500 | 1000 | 2000 | 5000 |
投料容積 | 3 | 180 | 300 | 600 | 1200 | 3000 |
電機功率 | 1.5×3 | 11×3 | 15×3 | 30×3 | 37×3 | 55×3 |
攪拌轉速 | 42 | 33 | 33 | 23 | 23 | 23 |
分散轉速 | 0~1500×2 | 0~1500×2 | 0~1500×2 | 0~980×2 | 0~980×2 | 0~980×2 |
真空度 | -0.098 | -0.098 | -0.098 | -0.098 | -0.098 | -0.098 |
